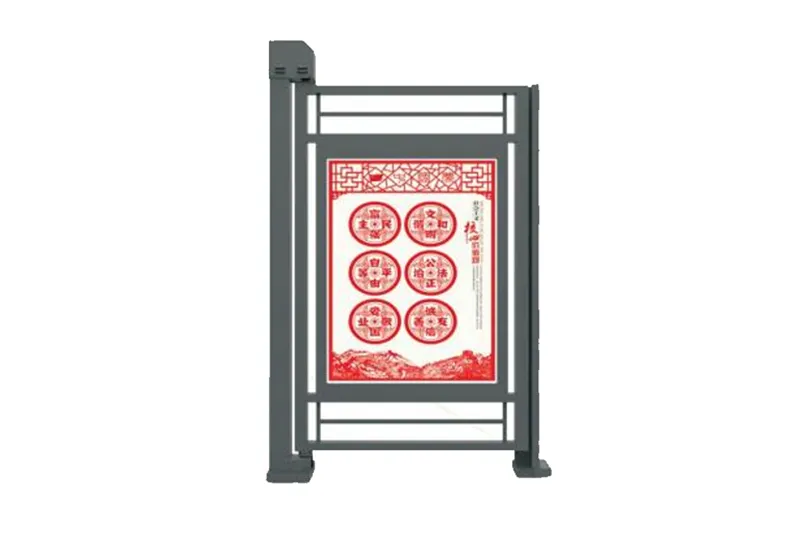

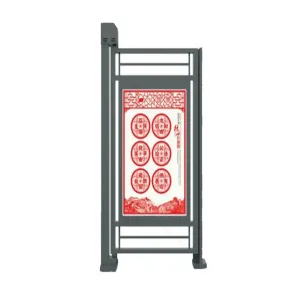

Product Introduction

The M-168C heightened pedestrian advertising gate is specifically designed for environments that require enhanced security and controlled pedestrian access. With its elevated structure and reinforced design, this system provides improved protection against unauthorized entry while maintaining efficient flow management.

As security demands continue to rise across commercial and public infrastructure, standard entrance gates are no longer sufficient for certain applications. The M-168C addresses this challenge by offering a high-security pedestrian access control system that combines physical deterrence with intelligent operation.

In addition to its robust structure, the system integrates an advertising display function, allowing operators to utilize entrance areas for communication and branding. This makes it an ideal solution for projects that require both security control and visual engagement.

Key Features

Heightened Gate Structure

The M-168C features an elevated door design, effectively improving access control security and reducing the risk of unauthorized crossing.

Anti-Climb Protection Design

The high door structure acts as a physical barrier, making it difficult to climb over, enhancing security in restricted areas.

High-Efficiency Brushless Motor

Powered by a DC 24V / 25W brushless motor, ensuring long service life, energy efficiency, and stable performance.

Intelligent Digital Control

Advanced digital circuits and industrial-grade algorithms provide accurate and responsive access control operation.

Fast Response Performance

Switching response as fast as 0.5 seconds, with adjustable opening and closing timing up to 6 seconds.

Low Noise & Smooth Operation

Optimized transmission system reduces vibration and ensures quiet operation, suitable for indoor and outdoor environments.

Integrated LED Lighting System

Built-in DC12V / 20W LED strip enhances visibility and improves advertising effectiveness.

Magnetic Lock Security

Equipped with DC12V / 180KG magnetic lock, providing strong and reliable locking force.

Emergency Push-Open Function

Allows manual opening during power failure or emergency situations.

Reinforced Welded Frame

The integrally welded structure ensures strength, durability, and long-term stability.

Product Advantages

Enhanced Security Performance

The heightened structure significantly improves security compared to standard pedestrian gates.

Anti-Climbing Capability

Designed to prevent unauthorized access, making it ideal for high-security environments.

Reliable High-Frequency Operation

Stable performance ensures continuous operation in busy and critical access points.

Intelligent Access Management

Advanced control system improves efficiency and user interaction.

Dual Function Integration

Combines access control and advertising display, maximizing entrance value.

Strong Environmental Adaptability

Operates reliably in extreme conditions from -50°C to +80°C.

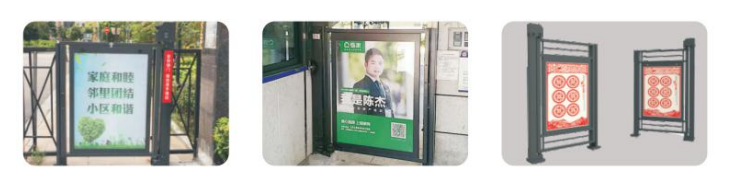

Applications

The M-168C is ideal for high-security pedestrian access control systems, including:

Government and administrative buildings

Industrial and restricted facilities

High-end residential communities

Data centers and secure areas

Airports and transportation hubs

Schools and controlled campuses

It is particularly suitable for locations requiring enhanced security, anti-climb protection, and controlled pedestrian flow.

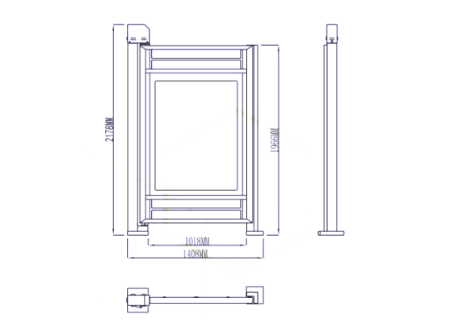

Technical Specifications

Working Voltage: DC 24V

Motor Power: 25W

LED Strip: DC12V / 20W

Magnetic Lock: DC12V / 180KG

Operating Temperature: -50°C to +80°C

Safety & Performance Characteristics

Equipped with a DC brushless motor for high efficiency and long service life

Advanced digital control system with industry-leading performance

Intelligent algorithms for smooth and responsive operation

Low vibration, low noise, and stable transmission performance

Adjustable switching speed and dwell time

Fast response time (as low as 0.5 seconds)

Emergency push-open function for safety compliance

Integrally welded frame for strength and durability

Heightened door design to prevent climbing and unauthorized access

FAQ

1. What is a heightening pedestrian gate?

A heightening pedestrian gate is designed with increased height to improve security and prevent unauthorized access.

2. What makes the M-168C different from other models?

It features a high door structure with anti-climb protection, making it suitable for high-security applications.

3. Is this gate suitable for restricted areas?

Yes, it is ideal for secure facilities and controlled access zones.

4. How fast does the gate operate?

The response time can be as fast as 0.5 seconds, ensuring efficient pedestrian flow.

5. Is it safe during power failure?

Yes, it supports manual push-open for emergency situations.

6. Can it handle extreme environments?

Yes, it operates in temperatures ranging from -50°C to +80°C.
