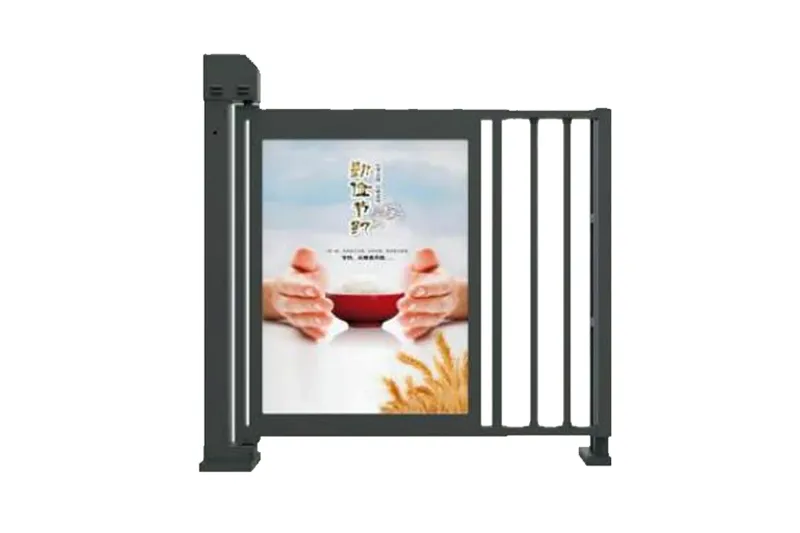

Product Introduction

The M-168B extended pedestrian advertising gate is designed for environments that require wider passage capacity and enhanced visibility in pedestrian access control systems. As an upgraded extension model, it offers a broader channel structure compared to standard gates, making it ideal for high-traffic areas and locations with increased accessibility requirements.

This wide channel pedestrian gate system combines intelligent access control with integrated advertising functionality, transforming traditional entry points into efficient and visually engaging spaces. It is especially suitable for commercial complexes, transportation hubs, and public facilities where both pedestrian flow efficiency and brand communication are important.

Built with a high-efficiency DC brushless motor and advanced control algorithms, the M-168B ensures smooth operation, fast response, and long service life. Its robust structure and scalable design make it a reliable solution for modern smart entrance control systems.

Technical Specifications

Working Voltage: DC 24V

Motor Power: 25W

LED Strip: DC12V / 20W

Magnetic Lock: DC12V / 180KG

Operating Temperature: -50°C to +80°C

Safety & Performance Characteristics

Uses a DC brushless motor with high efficiency and long service life

Advanced digital control circuit with industry-leading performance

Intelligent algorithms enable smooth and responsive interaction

Low vibration, low noise, and stable transmission performance

Adjustable switching speed and dwell time

Fast response (as low as 0.5 seconds) with configurable operation timing

Manual push-open function during closing or power failure

Integrally welded frame structure for strength and durability

Key Features

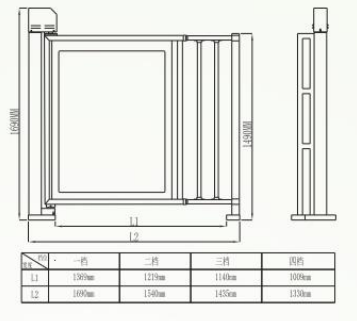

Extended Channel Design

The M-168B features a widened passage structure, making it ideal for high-capacity pedestrian flow control and accessibility needs such as luggage, carts, or assisted mobility.

High-Efficiency Brushless Motor

Powered by a DC 24V brushless motor (25W), ensuring energy efficiency, low maintenance, and long-term stable operation.

Intelligent Control System

Equipped with advanced digital circuits and industrial-grade algorithms for responsive and accurate human-machine interaction.

Fast and Adjustable Response

Switching response can be as fast as 0.5 seconds, with adjustable opening/closing time up to 6 seconds to match different traffic scenarios.

Low Noise & Smooth Transmission

Optimized transmission structure ensures minimal vibration, low noise, and stable operation in continuous use environments.

Integrated LED Lighting

Built-in DC12V / 20W LED strip enhances visibility and improves advertising display effectiveness.

Magnetic Lock Protection

Equipped with a DC12V / 180KG magnetic lock, providing secure and controlled pedestrian access.

Emergency Push-Open Function

The gate can be manually pushed open during operation or power failure, ensuring safety and compliance.

Reinforced Welded Structure

The door frame is integrally welded, providing high strength, durability, and a clean modern appearance.

Product Advantages

Designed for Wide Access Scenarios

Compared to standard models, the M-168B supports wider passages, making it suitable for high-traffic and accessibility-focused environments.

High-Speed Operation Efficiency

Fast response and adjustable timing improve throughput in busy pedestrian channel systems.

Reliable and Stable Performance

Industrial-grade components ensure consistent operation in demanding environments.

Enhanced Safety Assurance

Magnetic locking and emergency opening features provide safe and controlled access management.

Flexible Installation Options

The extended structure allows adaptation to different site layouts and project requirements.

Dual Functionality

Combines access control and advertising display, increasing the commercial value of entrance spaces.

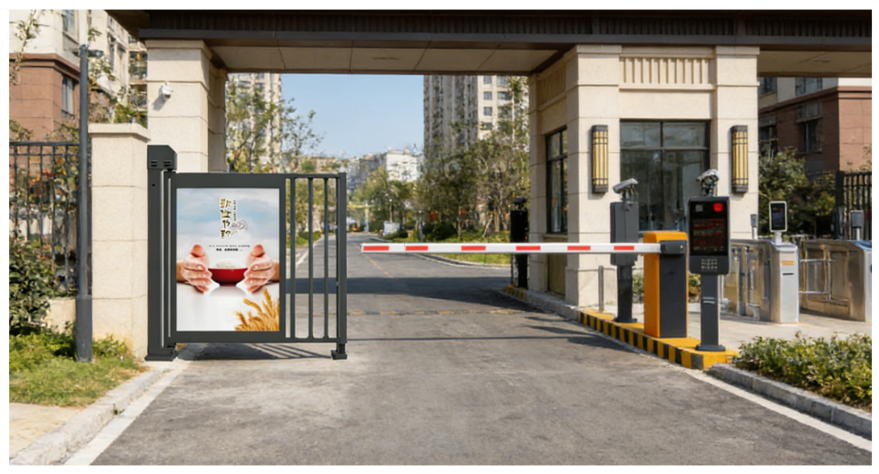

Applications

The M-168B is widely used in wide channel pedestrian access control systems, including:

Shopping malls and large retail centers

Airports and transportation hubs

Office building lobbies and business parks

Exhibition halls and event venues

Hospitals and public service facilities

Schools and campus entrances

It is particularly suitable for environments requiring wide access lanes and efficient pedestrian flow management.

FAQ

1. What is an extended pedestrian gate?

An extended pedestrian gate is designed with a wider passage to support higher traffic flow and accessibility needs.

2. What makes the M-168B different from standard models?

It features a wider channel design, making it suitable for high-capacity and accessible entrance systems.

3. Is it suitable for high-traffic environments?

Yes, it is specifically designed for high-flow pedestrian control systems.

4. Does it support fast operation?

Yes, the response time can be as fast as 0.5 seconds, ensuring efficient throughput.

5. Is the system safe during power failure?

Yes, the gate supports manual push-open for emergency situations.

6. What industries commonly use this system?

It is widely used in transportation hubs, commercial centers, and public facilities.
