Product Introduction

The LLZH-D106-G Canvas Lightbox advertising barrier gate is a high-performance DC-powered access control solution engineered to merge reliable parking lot management with eye-catching out-of-home advertising capabilities. Built for seamless integration with smart traffic systems, this gate combines a heavy-duty motor, a vibrant LED-lit canvas lightbox, and an adjustable lifting mechanism to meet the dual needs of traffic control and brand promotion in commercial and residential environments.

Key Features

DC24V 200W Universal Motor System

Delivers consistent, quiet operation with adjustable 3-6 second lifting speed to accommodate varying traffic flow demands.

Large 3000*800mm LED Canvas Lightbox

Features a high-brightness DC24V 150W LED strip that illuminates vivid advertisements, turning every access point into a revenue-generating display.

IP54 Weatherproof Construction

Ensures stable performance across extreme temperatures from -30°C to 80°C, withstanding rain, dust, and humidity in outdoor installations.

Compact yet Robust Design

With a 240mm base clearance and a sleek 1080mm height profile, it fits narrow access lanes without compromising structural durability.

Product Advantages

Dual-Function Traffic & Advertising Value

Eliminates the need for separate access control and billboard investments, creating a cost-effective solution that drives both security and marketing results.

Low Maintenance, High Durability Build

The DC motor and IP54-rated components reduce long-term service costs, making it ideal for high-traffic locations with minimal upkeep requirements.

High-Impact, Customizable Visual Marketing

The full-size canvas lightbox offers premium visibility for brand messaging, delivering targeted impressions to every driver entering or exiting the property.

Flexible Installation & Compatibility

Works seamlessly with existing parking systems and can be deployed in both new construction and retrofitted access control environments.

Application Scenarios

Commercial Parking Lots & Shopping Centers

The 3000*800mm lightbox provides prime advertising space for retail promotions, while the adjustable lifting speed handles frequent customer vehicle flow efficiently.

Residential Communities & Gated Housing Estates

The IP54 weatherproof design and quiet DC motor ensure reliable daily use, with the gate’s compact footprint fitting standard residential access lanes perfectly.

Office Parks & Corporate Campuses

Serves as both a secure traffic control point and a platform for corporate branding or tenant advertising, aligning with professional campus aesthetics.

Public Facilities & Municipal Parking Areas

With its wide operating temperature range and high humidity resistance, it performs reliably in diverse outdoor conditions while displaying public service announcements or local business ads.

Technical Specifications

Input Voltage: 220V±10%

Operating Temperature: -30°C - 80°C

LED Strip Power Supply: DC24V, 150W

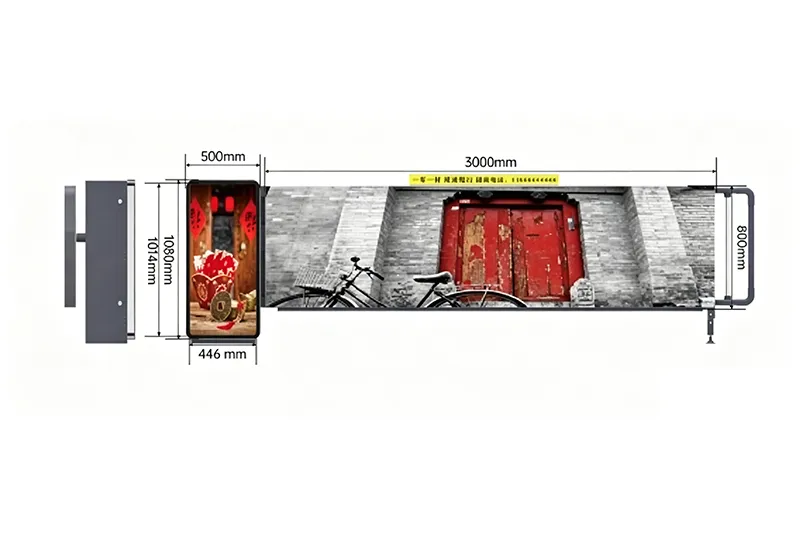

Advertising Canvas Size: 3000*800mm

Distance Between Gate Bottom and Machine Base: 240mm

Motor Voltage: DC24V 200W

Relative Humidity: ≤90% Non-Condensing

Height After Lifting: Determined by Gate Rod Length

Lifting Time: Adjustable 3-6 Seconds

Protection Grade: IP54

FAQ

1. What power supply does the LLZH-D106-G barrier gate require?

   It uses a 220V±10% input power supply, with a DC24V 200W motor and a separate DC24V 150W power supply for the LED lightbox.

2. Can the lifting speed of this advertising barrier gate be adjusted?

   Yes, the lifting time is adjustable between 3 and 6 seconds to match different traffic volume needs.

3. Is this barrier gate suitable for outdoor use in harsh weather?

   Yes, it features an IP54 protection grade and can operate in temperatures from -30°C to 80°C with up to 90% non-condensing humidity.

4. What is the size of the advertising canvas on this gate?

   The advertising canvas measures 3000*800mm, offering a large, high-visibility display area.
