Product Introduction

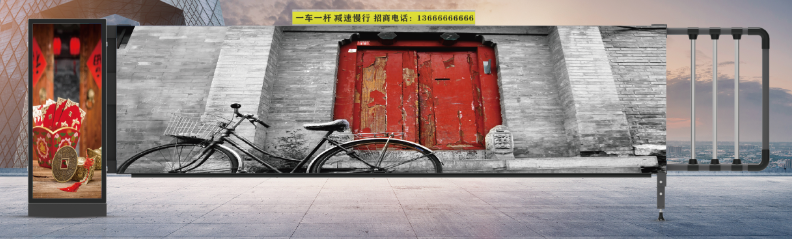

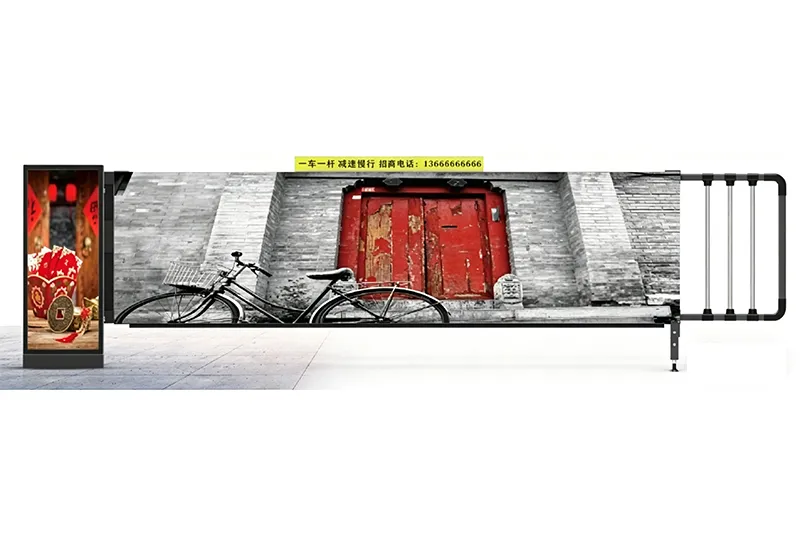

The LLZH-D106-T advertising barrier gate, powered by a reliable DC24V motor, is a versatile and high-performance solution designed for modern traffic management and commercial advertising needs. Built for AI-enabled lane control with agile sensing capabilities, this universal DC barrier gate combines robust traffic access control functionality with an oversized lightbox advertising canvas, creating a dual-purpose system that enhances both security and revenue potential for various properties. It is engineered to withstand diverse environmental conditions while delivering smooth, adjustable operation and eye-catching advertising display options.

Key Features

Dual-Function Design

Integrates high-performance traffic barrier control with an 800*3000mm oversized lightbox advertising canvas for seamless monetization of entryway spaces.

Universal DC24V Motor System

Equipped with a reliable DC24V motor that ensures stable, energy-efficient operation for long-term use.

AI Lane Sensing Technology

Features agile, precise vehicle detection for fast, responsive opening and closing actions in high-traffic environments.

Flexible Lightbox Configurations

Supports multiple canvas sizes including 750mm(H)2800mm(W) and 1000420mm to fit different installation requirements.

Adjustable Opening Speed

Offers customizable opening speeds from 3 to 10 seconds to adapt to varying traffic flow conditions.

Wide Operating Temperature Range

Functions reliably across -45℃ to 70℃, suitable for both extreme cold and hot climates.

Product Advantages

Enhanced Revenue Generation

Turns standard access control points into high-visibility advertising spaces, creating passive income streams for property owners.

Durable All-Weather Construction

IP54-rated protection ensures resistance to dust and moisture, extending the product’s service life in outdoor settings.

Long Extended Barrier Reach

Supports a maximum barrier length of 4.2 meters, making it suitable for wide driveways and commercial entrances.

Energy-Efficient LED Lighting

100W LED light power provides bright, eye-catching illumination for advertisements without excessive energy consumption.

Low-Maintenance Operation

With a robust 2.0mm thick chassis and minimal moving parts, the system requires little ongoing maintenance.

High Safety & Stability

DC24V motor design ensures safe operation while delivering consistent power for reliable daily use.

Application Scenarios

Commercial Parking Lots & Malls

The large advertising canvas is ideal for promoting store promotions, while the long barrier length efficiently controls wide entryways for high-volume visitor traffic.

Residential Communities & Gated Neighborhoods

The AI sensing function ensures smooth, quiet operation for residents, and the lightbox can display community announcements or partner business ads.

Office Buildings & Corporate Campuses

The IP54 rating and wide temperature range make it suitable for outdoor corporate entrances, with branded advertisements enhancing professional image.

Industrial Parks & Logistics Centers

The 4.2m max length accommodates large vehicle access, and the durable build withstands heavy daily use in busy industrial environments.

Hotel & Resort Entrances

Adjustable opening speeds cater to guest vehicle flow, and the advertising canvas can showcase hotel amenities or local attractions to arriving visitors.

Technical Specifications

Model: LLZH-D106-T

Working Voltage: AC220V+10%

Working Temperature: -45-70℃

LED Light Power: 100W

Barrier Type: Fabric Lightbox Telescopic Rod

Barrier Length: Max 4.2 meters

Relative Humidity: ≤95% Non-condensing

Opening Speed: 3-10 seconds adjustable

2.8m Pole Canvas Size: 750mm(Height)*2800mm(Width)

Chassis Thickness: 2.0mm

Motor Power: 180W

LED Light Power: 100W

Remote Control Distance: ≤50m

Chassis Canvas Size: 1000*420mm

Motor Voltage: DC24V

Protection Level: IP54

Canvas Height: 750mm

Chassis Size: 430mm(Width)*330mm(Thickness)*1080mm(Height)

Motor Voltage: DC24V

Oversized Lightbox Advertising Canvas: 800*3000mm

Safety & Performance Characteristics

The LLZH-D106-T Advertising Barrier Gate prioritizes both operational safety and consistent performance. Its DC24V motor design ensures low-voltage, safe operation for users and installers, while the IP54 protection level safeguards internal components against dust and splashing water, reducing failure risks in outdoor environments. The adjustable opening speed prevents sudden movements that could cause accidents, and the ≤95% non-condensing humidity tolerance ensures reliable function even in humid climates.

Frequently Asked Questions (FAQ)

1、What is the maximum barrier length this model supports?

This barrier gate supports a maximum barrier length of 4.2 meters, suitable for wide driveways and commercial entrances.

2、Can the opening speed be adjusted?

Yes, the opening speed is adjustable between 3 and 10 seconds to match different traffic flow needs.

3、What kind of advertising canvas sizes are available?

It supports multiple sizes including 800*3000mm, 750mm(H)2800mm(W), and 1000420mm for flexible installation.

4、What is the protection level of this barrier gate?

It features an IP54 protection level, offering reliable defense against dust and splashing water for outdoor use.

5、Does the system support remote control operation?

Yes, it includes a remote control with a maximum operating distance of ≤50 meters for convenient access control.
