Product Introduction

The D105 entry-level parking barrier gate is a practical solution designed for projects that require reliable vehicle access control in compact environments. As a simplified yet efficient vehicle access gate, it is ideal for installations where space, budget, and ease of use are primary considerations.

In many small and mid-sized facilities, there is no need for complex or high-cost systems. The D105 offers a balanced approach by delivering essential functionality in a streamlined structure. This makes it an excellent choice for users looking for a dependable compact parking solution without unnecessary features.

Designed with a focus on usability and efficiency, this automatic vehicle barrier ensures smooth operation, stable performance, and straightforward system integration. It is widely applied in residential entrances, small business parking areas, and controlled access points where simplicity and reliability matter most.

Functional Features

1. The design is simple and unique, the chassis is sturdy and durable, with advanced surface treatment technology, suitable for outdoor environments;

2. It adopts an integrated mechanism, mold-based production, effectively ensuring the smooth and reliable operation of the barrier gate;

3. Fully gear integrated reducer, easy installation and maintenance, convenient and quick adjustment in both left and right directions;

4. Multiple control methods are available for users to choose, either using the external control box buttons to manually control the raising, lowering and stopping of the barrier gate, or choosing the remote control device to perform remote control of the barrier gate's operation;

5. When used with the optional vehicle detector, it can have functions such as "automatic lowering of the barrier gate after a vehicle passes" and "automatic raising of the barrier gate when it is lowered with a vehicle", thus enabling the barrier gate to have automatic closing and complete anti-car-crushing functions;

6. It has an opening priority function. During the descent of the barrier gate, in case of an emergency, as long as the opening signal is received, the barrier gate will immediately execute the opening action;

7. The system adopts standard electrical interfaces externally, which can be conveniently connected with other systems selected by the user.

Technical Specifications

Working voltage: 220V + 10% / 50Hz;

Motor specification: 220V / 120W

Operating environment temperature: -30℃ to 80℃;

Remote control distance: ≤ 30m

Landing and lifting time: Medium speed 1.5s / Slow speed 3s

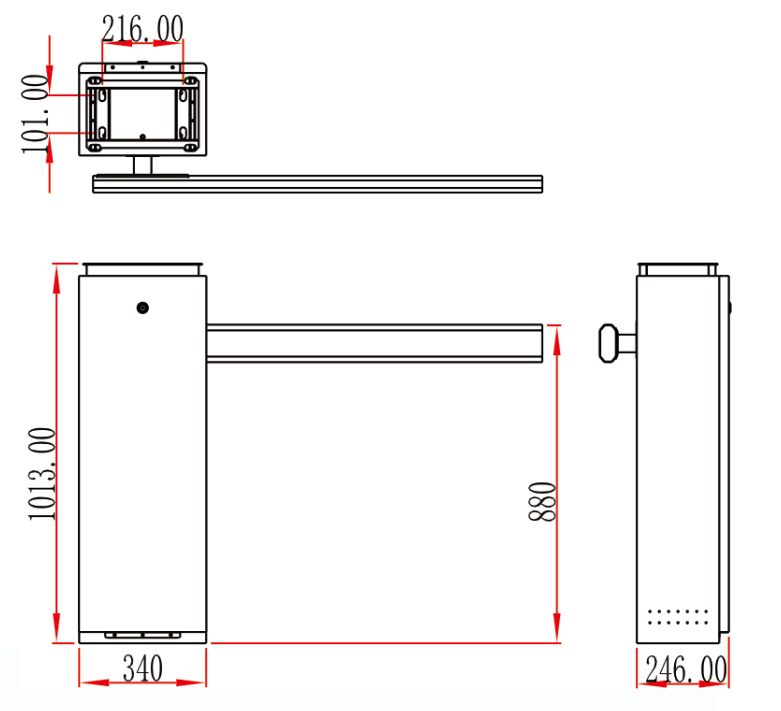

Case size: 340*246*1013mm

Center height of the gate rod from the ground: 850mm;

Straight/curved gate rod limit length: Standard configuration uses red and white octagonal rods, straight rods can be equipped with telescopic octagonal rods, the longest is 6 meters

Barrier gate rod limit length: Two barriers 6 meters, three barriers 4.5 meters, standard red and white barrier rods

Product Advantages

Simplified System for Easy Deployment

The D105 eliminates unnecessary complexity, making it ideal for fast installation and straightforward operation.

Budget-Friendly Choice

As a cost-efficient parking barrier, it provides reliable functionality at a lower investment level.

Space Optimization

Perfectly suited for compact parking solutions, especially where installation space is restricted.

Stable Daily Performance

Ensures smooth and consistent operation for routine vehicle entry and exit management.

Upgrade Flexibility

Can be integrated with basic or upgraded vehicle access control systems as project needs evolve.

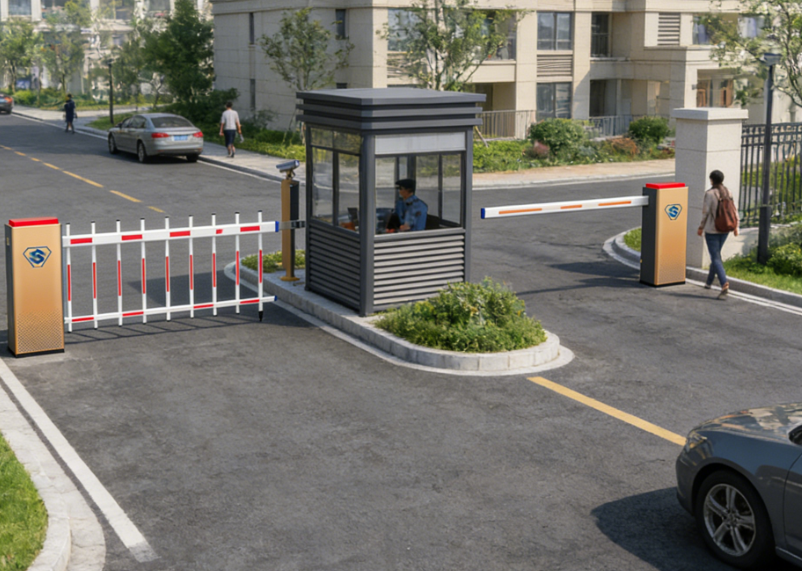

Applications

The D105 is designed for various entry-level parking management scenarios, including:

Small residential access points

Private parking entrances

Retail shop parking areas

Office building side entrances

Small-scale industrial facilities

Temporary or project-based installations

It is especially suitable for projects that require basic vehicle control with minimal system complexity.

FAQ

1. What is an entry-level parking barrier gate?

An entry-level parking barrier gate is a simplified vehicle access gate designed for basic parking control applications.

2. Who should use this type of barrier gate?

It is ideal for users who need a compact parking solution with reliable performance and lower cost.

3. Can this gate be used in residential areas?

Yes, it is commonly used as a residential vehicle access gate due to its quiet operation and compact design.

4. Is it easy to install?

Yes, the simplified structure allows quick installation and easy setup.

5. Can the system be upgraded later?

Yes, it can be connected to additional vehicle control systems if needed.

6. What makes it different from advanced barrier systems?

The D105 focuses on simplicity, affordability, and essential functionality, rather than advanced features.
