Product Introduction

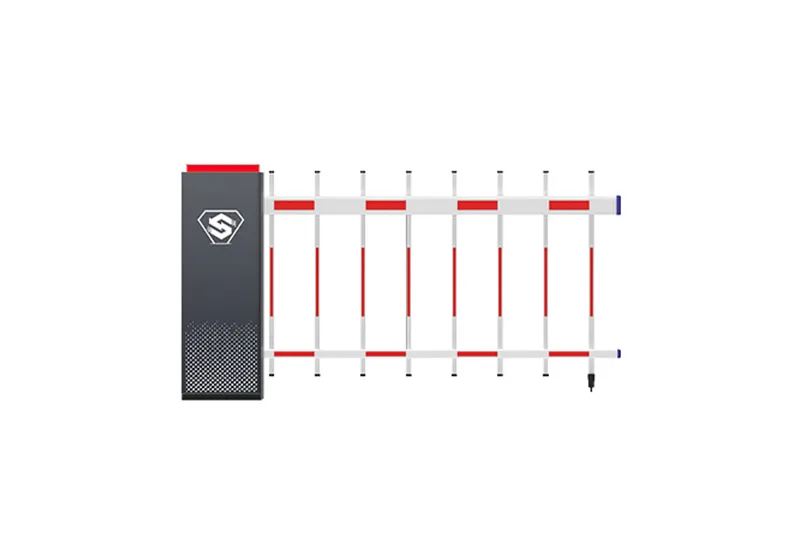

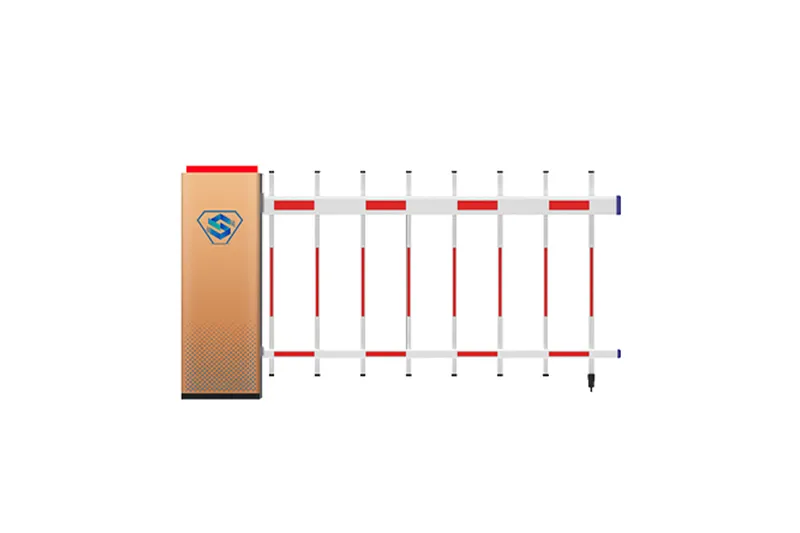

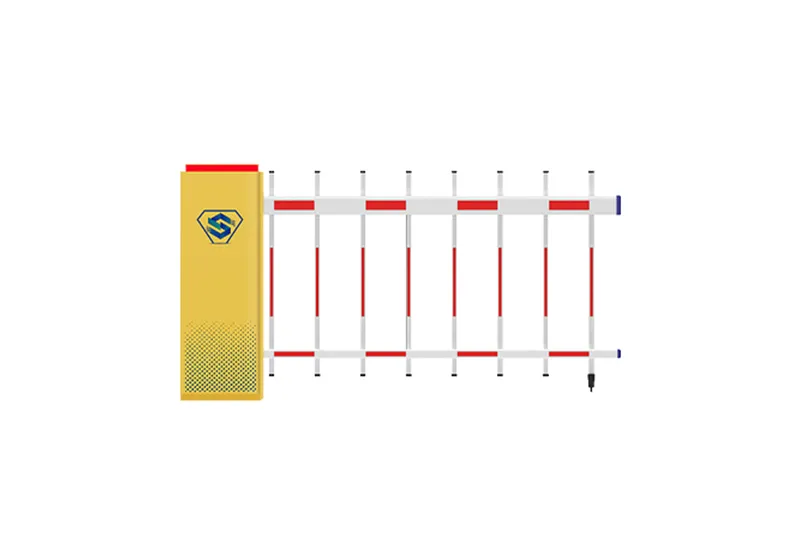

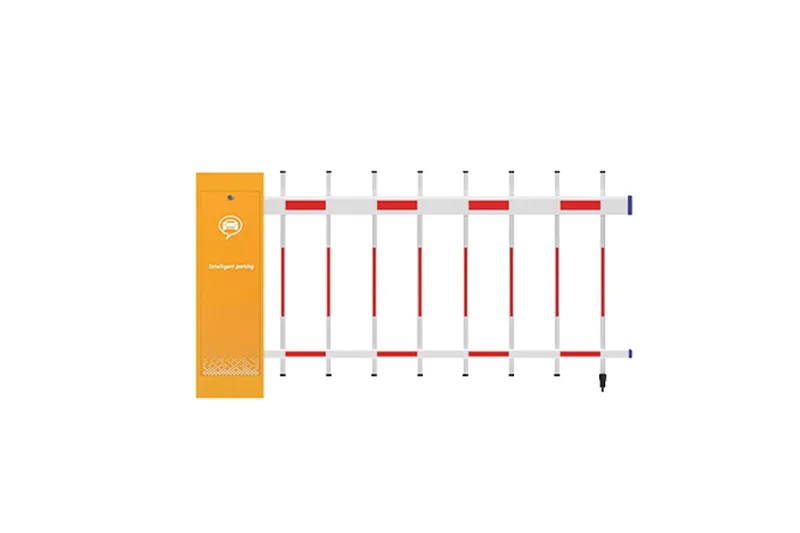

The D105 durable barrier gate is engineered to provide stable and long-lasting performance in demanding environments where consistent vehicle access control is essential. As a reliable vehicle access system, it is designed for continuous operation in both commercial and industrial settings.

Unlike basic entry-level solutions, the D105 focuses on structural strength and operational reliability. It is built to handle frequent usage while maintaining smooth and controlled barrier movement. This makes it an ideal choice for users who require a reliable parking control solution without unnecessary complexity.

With a focus on durability and efficiency, this automatic vehicle barrier system ensures uninterrupted performance in daily operations. It is widely used in factories, logistics areas, commercial facilities, and secured entrances where dependable access control is critical.

Functional Features

1. The design is simple and unique, the chassis is sturdy and durable, with advanced surface treatment technology, suitable for outdoor environments;

2. It adopts an integrated mechanism, mold-based production, effectively ensuring the smooth and reliable operation of the barrier gate;

3. Fully gear integrated reducer, easy installation and maintenance, convenient and quick adjustment in both left and right directions;

4. Multiple control methods are available for users to choose, either using the external control box buttons to manually control the raising, lowering and stopping of the barrier gate, or choosing the remote control device to perform remote control of the barrier gate's operation;

5. When used with the optional vehicle detector, it can have functions such as "automatic lowering of the barrier gate after a vehicle passes" and "automatic raising of the barrier gate when it is lowered with a vehicle", thus enabling the barrier gate to have automatic closing and complete anti-car-crushing functions;

6. It has an opening priority function. During the descent of the barrier gate, in case of an emergency, as long as the opening signal is received, the barrier gate will immediately execute the opening action;

7. The system adopts standard electrical interfaces externally, which can be conveniently connected with other systems selected by the user.

Technical Specifications

Working voltage: 220V + 10% / 50Hz;

Motor specification: 220V / 120W

Operating environment temperature: -30℃ to 80℃;

Remote control distance: ≤ 30m

Landing and lifting time: Medium speed 1.5s / Slow speed 3s

Case size: 340*246*1013mm

Center height of the gate rod from the ground: 850mm;

Straight/curved gate rod limit length: Standard configuration uses red and white octagonal rods, straight rods can be equipped with telescopic octagonal rods, the longest is 6 meters

Barrier gate rod limit length: Two barriers 6 meters, three barriers 4.5 meters, standard red and white barrier rods

Product Advantages

High Durability for Continuous Use

The D105 is built for long-term operation, making it suitable for high-usage parking environments.

Reliable Performance in Critical Areas

Provides consistent and dependable control for entrances where failure is not an option.

Reduced Maintenance Needs

Durable components help minimize maintenance frequency and operational downtime.

Versatile Deployment

Can be installed in both commercial and industrial access control systems.

Balanced Cost and Performance

Offers a strong combination of durability and affordability compared to more complex systems.

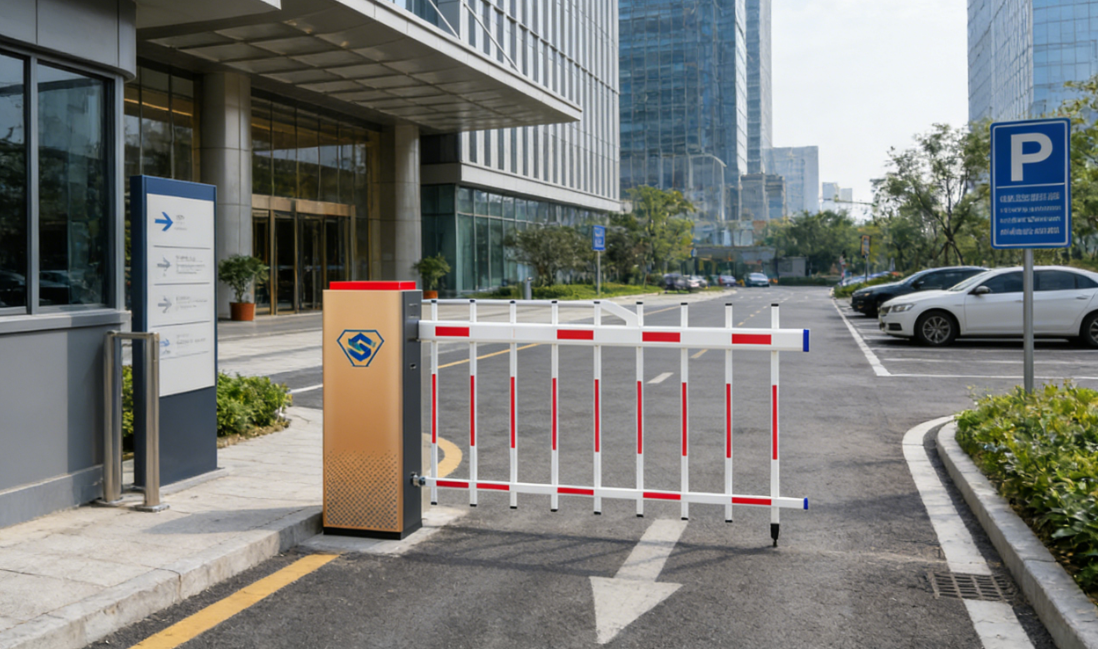

Applications

The D105 is widely used in reliable parking control system scenarios such as:

Industrial facilities and factory entrances

Logistics and warehouse access points

Commercial building parking areas

Secured entry points for restricted zones

Office complexes with frequent vehicle flow

Infrastructure and utility facilities

It is particularly suitable for environments requiring consistent and durable vehicle access control.

FAQ

1. What is a durable barrier gate?

A durable barrier gate is designed for long-term and high-frequency use in vehicle access control systems.

2. Is the D105 suitable for industrial use?

Yes, it is ideal for industrial parking control and high-traffic access points.

3. Can it handle continuous operation?

Yes, the system is built for reliable performance under frequent usage conditions.

4. Does it require frequent maintenance?

No, the durable design helps reduce maintenance needs and operational downtime.

5. Can it be integrated with existing systems?

Yes, it supports integration with standard vehicle access control systems.

6. Where is this product commonly used?

It is widely used in factories, logistics centers, commercial parking areas, and secured facilities.
