Product Overview

The RH-C side-mounted door opener is a high-performance automatic swing door operator designed for intelligent access control in modern buildings. With its compact side-mounted structure, this system provides stable operation, strong driving force, and flexible installation, making it ideal for various door automation applications.

Specifically engineered for single and double swing doors, the RH-C is suitable for multiple door types including aluminum alloy doors, wooden doors, fire-rated doors, and commercial glass doors (KFC-style doors) . It supports both inward and outward opening, ensuring compatibility with diverse installation environments.

Equipped with an intelligent control system, the RH-C allows seamless integration with access control devices, facial recognition systems, and remote management platforms, enabling automated and secure entrance management.

With strong torque output and advanced parameter configuration, this model delivers reliable performance in both residential and commercial scenarios.

Key Specifications

Motor Power: 60W

Motor Torque: 80N·m

Input Voltage: AC 220V

Working Voltage: DC 24V

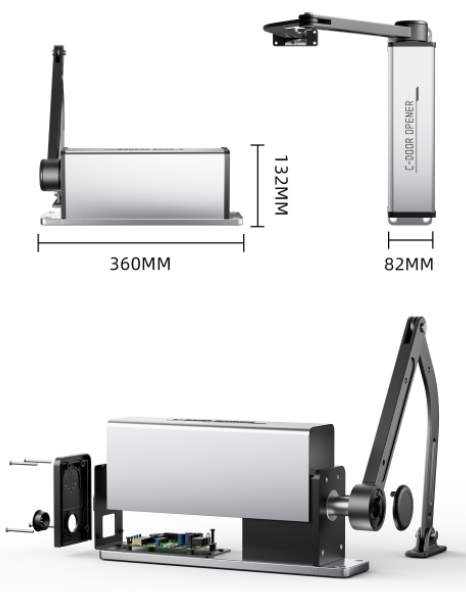

Product Size: 350 × 83 × 133 mm

Base Size: 360 × 80 mm

Weight: Approx. 8.6 kg

Product Features

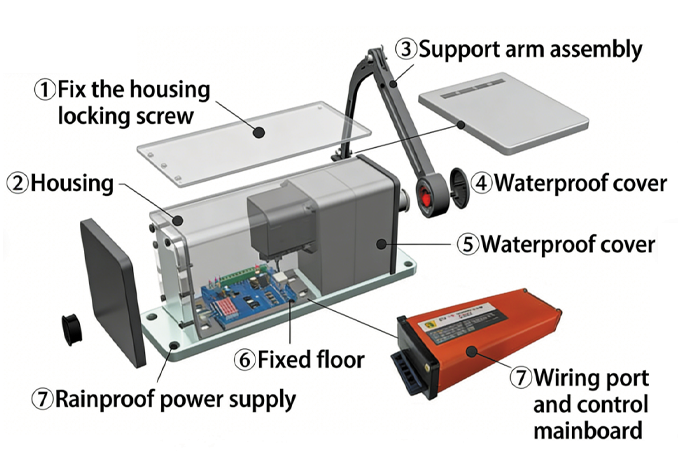

Side-Mounted Installation Design

The side-mounted structure allows flexible installation in limited spaces and provides strong mechanical support for door operation.

High Torque Motor Output

With 80N·m torque, the system ensures smooth opening and closing even for heavy doors.

Intelligent Parameter Adjustment

Supports adjustable settings such as opening position, closing force, obstacle sensitivity, and delay time for optimized performance

Automatic Learning Function

The system can learn door opening and closing positions automatically or manually for precise control.

Multi-Door Mode Support

Supports single door, double door, and master-slave door configurations for different project needs

Safety Protection System

Includes obstacle detection, anti-collision response, and overcurrent protection to ensure safe operation.

Product Advantages

Strong Driving Capability

Compared with standard door operators, the RH-C offers higher torque output, making it suitable for heavier and larger doors.

Flexible Installation Options

Side-mounted design is ideal for installations where top or bottom mounting is not feasible.

Precise Control Performance

Fine-tuning of opening angle and closing force ensures smooth and controlled door movement.

Enhanced Safety Features

Equipped with intelligent anti-collision and rebound mechanisms to prevent accidents and damage.

Easy System Integration

Compatible with modern access control systems, smart entry solutions, and remote control systems.

Reliable Long-Term Operation

Built with durable components to ensure stable performance and reduced maintenance requirements.

Product Applications

The RH-C side-mounted door opener is widely used in:

Residential communities and apartment entrances

Commercial buildings and office access systems

Shopping malls and retail stores

Hospitals and healthcare facilities

Schools and campus buildings

Industrial and controlled access areas

It is especially suitable for scenarios requiring strong torque, flexible installation, and intelligent automation.

FAQ

1. What types of doors are compatible with RH-C?

It supports single and double swing doors, including aluminum, wooden, glass, and fire-rated doors.

2. Can it be integrated with access control systems?

Yes, it supports integration with access control, facial recognition, and remote systems.

3. Is it suitable for heavy doors?

Yes, with 80N·m torque, it is designed for medium to heavy-duty doors.

4. Does it support automatic learning?

Yes, it supports both automatic and manual learning of door positions.

5. What safety features are included?

It includes obstacle detection, rebound function, and overcurrent protection.

6. Is installation complicated?

No, the modular design and side-mount structure allow easy and flexible installation.
