Safety characteristics

It adopts DC brushless motor, which has high efficiency and long service life.Digital circuit, industry leading.Industrial-grade algorithms that truly intelligent human-computer interaction.The transmission ratio is fine, the vibration is small, the noise is low, and the operation is stable.

The switching speed and dwell time can be adjusted, and the switching response canbe as small as 0.5 seconds, and the switch can be realized in as long as 6 seconds.

The door body can be reopened by simply pushing it in the middle of closing the door.The door frame is integrally welded and formed to be strong and save.

Product Introduction

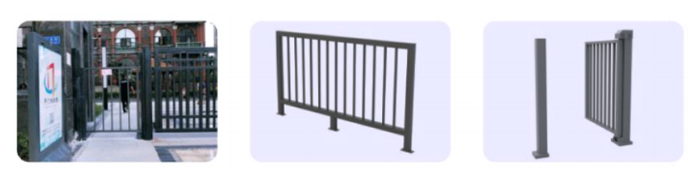

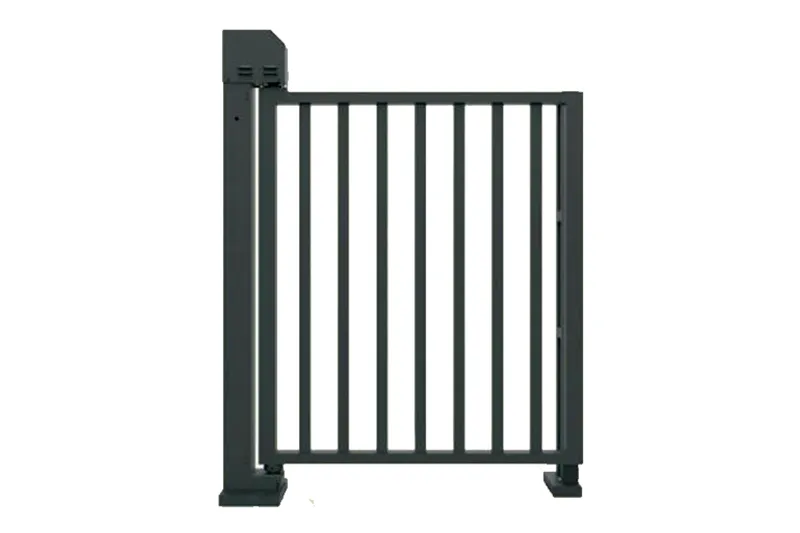

The M-168D pedestrian barrier advertising gate is a specialized solution designed for environments that require strict control over pedestrian access and movement. As a barrier-type channel gate, it focuses on preventing unauthorized entry, tailgating, and uncontrolled passage, ensuring that only authorized individuals can pass through the access point.

In modern security scenarios, especially in commercial buildings, transportation hubs, and controlled facilities, managing pedestrian flow is not just about convenience—it is about security and accountability. The M-168D addresses this need by combining physical blocking structure with intelligent access control, creating a reliable and efficient pedestrian management system.

In addition to its strong control capabilities, the system integrates an advertising display function, allowing entrance areas to serve as communication and branding platforms. This makes it a practical solution for projects that require both security enforcement and commercial value enhancement.

Key Features

Barrier-Type Blocking Structure

The M-168D adopts a physical barrier design, effectively controlling pedestrian passage and preventing unauthorized entry or tailgating.

Anti-Tailgating Control

Engineered to allow single-person passage, reducing the risk of multiple people entering with one authorization.

High-Efficiency Brushless Motor

Powered by a DC 24V / 25W brushless motor, ensuring stable performance, low maintenance, and long service life.

Intelligent access control system

Equipped with advanced digital control and industrial-grade algorithms for precise and responsive operation.

Fast Switching Performance

Supports rapid response with switching speed as fast as 0.5 seconds, ensuring efficient flow while maintaining control.

Adjustable Operation Settings

Opening speed and dwell time can be adjusted according to different pedestrian flow control requirements.

Low Noise & Smooth Transmission

Optimized internal structure minimizes vibration and noise, ensuring a quiet and stable user experience.

Integrated LED Lighting

Built-in DC12V / 20W LED strip enhances visibility and improves advertising display impact.

Magnetic Lock Security

Equipped with DC12V / 180KG magnetic lock, ensuring strong locking force and controlled access.

Emergency Push-Open Function

Allows manual opening during emergencies or power failure for safety compliance.

Reinforced Welded Frame

The integrally welded structure ensures durability, strength, and long-term stability.

Product Advantages

Strong Access Control Capability

The barrier structure ensures strict control of pedestrian movement, making it ideal for security-sensitive environments.

Effective Anti-Tailgating Function

Designed to prevent unauthorized multiple entries, improving access control accuracy.

High Reliability in Continuous Operation

Industrial-grade components ensure stable performance in high-frequency usage scenarios.

Improved Security Management

Combines physical blocking with intelligent control for enhanced security system effectiveness.

Dual Functionality

Integrates access control and advertising display, maximizing entrance utilization.

Adaptability Across Environments

Suitable for indoor and outdoor installations with strong environmental tolerance.

Applications

The M-168D is widely used in controlled pedestrian access systems, including:

Office buildings with secure access control

Corporate headquarters and business parks

Transportation hubs (metro stations, terminals)

Government and administrative facilities

Industrial and restricted access areas

Exhibition centers and ticket-controlled venues

It is especially suitable for locations requiring strict access control, anti-tailgating, and regulated pedestrian flow.

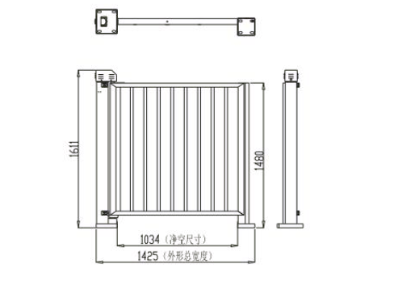

Technical Specifications

Working Voltage: DC 24V

Motor Power: 25W

LED Strip: DC12V / 20W

Magnetic Lock: DC12V / 180KG

Operating Temperature: -50°C to +80°C

FAQ

1. What is a pedestrian barrier gate?

A pedestrian barrier gate is a type of access control system designed to physically block and regulate pedestrian movement.

2. How does the M-168D prevent tailgating?

The system uses a controlled barrier mechanism to allow only one person to pass per authorization.

3. Is it suitable for high-security areas?

Yes, it is designed for security-sensitive environments requiring strict access control.

4. How fast does the gate operate?

It supports a response time as fast as 0.5 seconds, ensuring efficient yet controlled passage.

5. What happens during a power failure?

The gate can be manually pushed open to ensure safe evacuation.

6. Can it be integrated with access control systems?

Yes, it supports integration with various smart access control solutions.
