Product Introduction

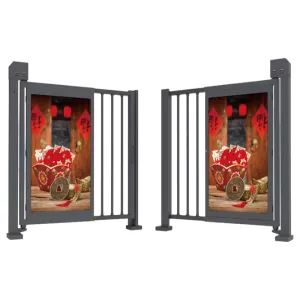

The LLZH-M168-B & M168-E Pedestrian Gate Series by Lailinzhihui (Shenzhen) Industrial Co., Ltd. offers two versatile access control solutions designed to meet diverse pedestrian management needs, combining security, durability, and optional advertising capabilities. Built with high-strength carbon steel and IP44 protection, these gates support multiple access verification methods, making them ideal for residential communities, commercial buildings, and public spaces seeking reliable, low-maintenance pedestrian entry control.

Key Features

Dual Functional Variants

Available in two configurations: the advertising-focused M168-B with a 1085×690mm canvas and the streamlined M168-E for pure access control applications.

Multi-Verification Access System

Supports card swiping, facial recognition, fingerprint, button, and remote control access methods, offering flexible entry options for different users.

IP44 Weatherproof Construction

With an IP44 protection rating, the gates resist dust and water splashes, ensuring reliable outdoor operation in diverse climates.

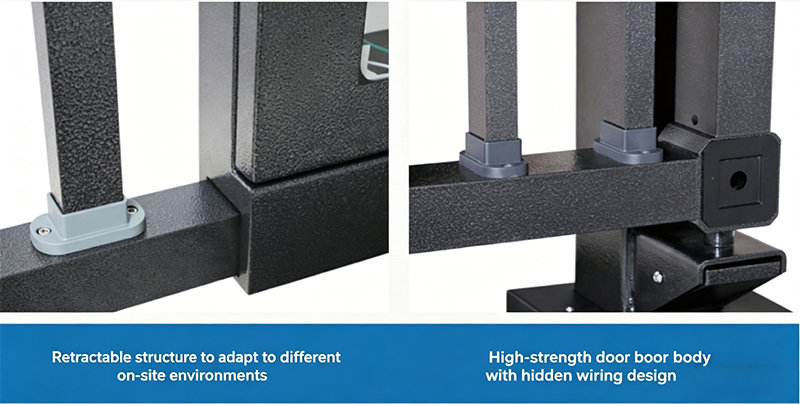

Retractable Structure Design

The M168-B features a retractable structure that adapts to different on-site environments for flexible installation.

Concealed Wiring & High-Strength Frame

Built with hidden wiring and a robust door frame for enhanced durability and a clean, modern aesthetic.

Low-Noise Operation

Operates at ≤65 decibels, ensuring quiet, unobtrusive performance in residential and commercial settings.

Product Advantages

Tailored Solutions for Different Needs

The dual-model series offers both advertising-enabled and standard pedestrian gates, allowing property owners to choose the right solution for their specific requirements.

Durable, Long-Lasting Build

Constructed with high-strength carbon steel and zinc alloy hinges for excellent load-bearing capacity, impact resistance, and long service life.

Flexible Installation Adaptability

The retractable structure of the M168-B and universal design of the M168-E ensure seamless integration with various property layouts.

Enhanced Security & Control

Multiple access verification methods provide strict control over pedestrian entry, while the robust construction prevents unauthorized access.

Low-Maintenance Performance

With a scratch-resistant silver gray finish and weatherproof components, the gates require minimal upkeep while maintaining reliable operation.

Application Scenarios

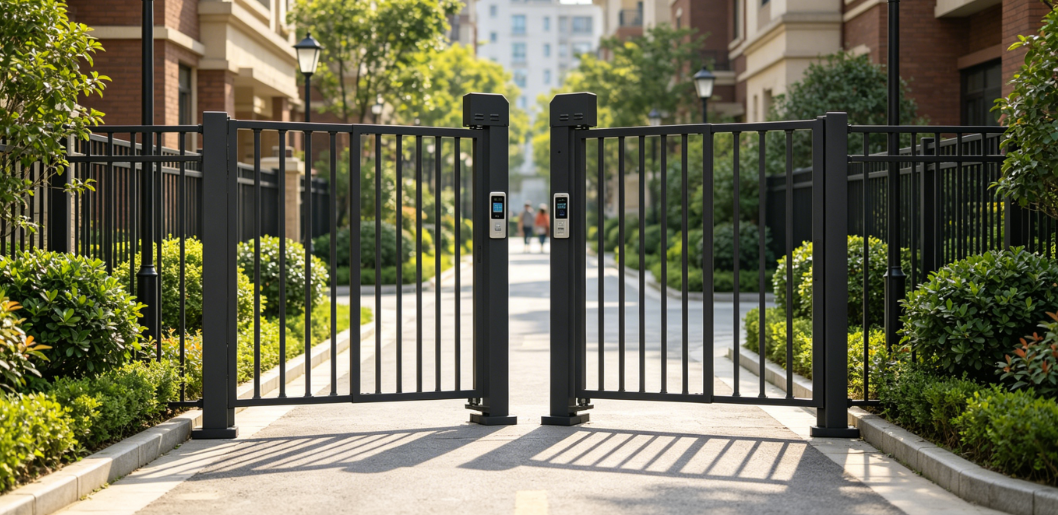

Residential Community Pedestrian Entrances

The M168-B model is ideal for gated communities, where its advertising canvas can display local promotions or safety notices while managing resident access.

Apartment Complex & Housing Estate Pathways

The IP44 weatherproof construction of both models withstands daily foot traffic and outdoor conditions, making them suitable for apartment complexes seeking reliable access control.

Commercial Office Building Side Entrances

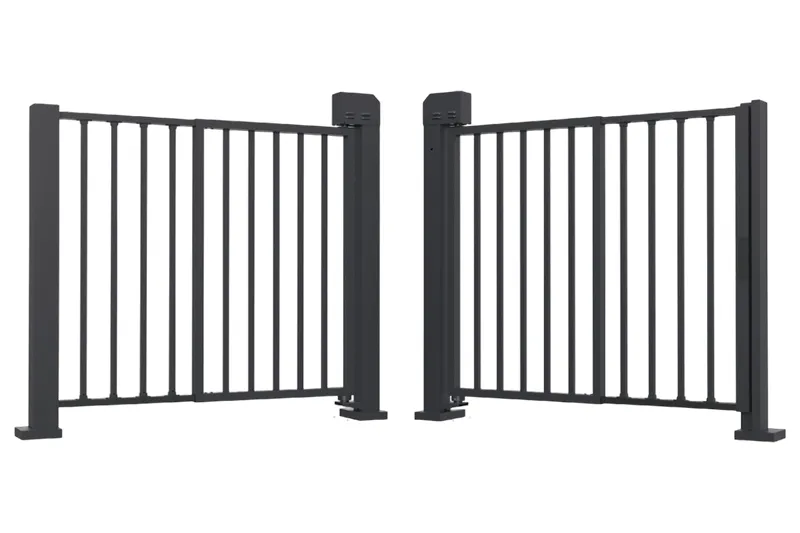

The streamlined M168-E model is perfect for corporate campuses to manage employee and visitor pedestrian traffic with a clean, professional design.

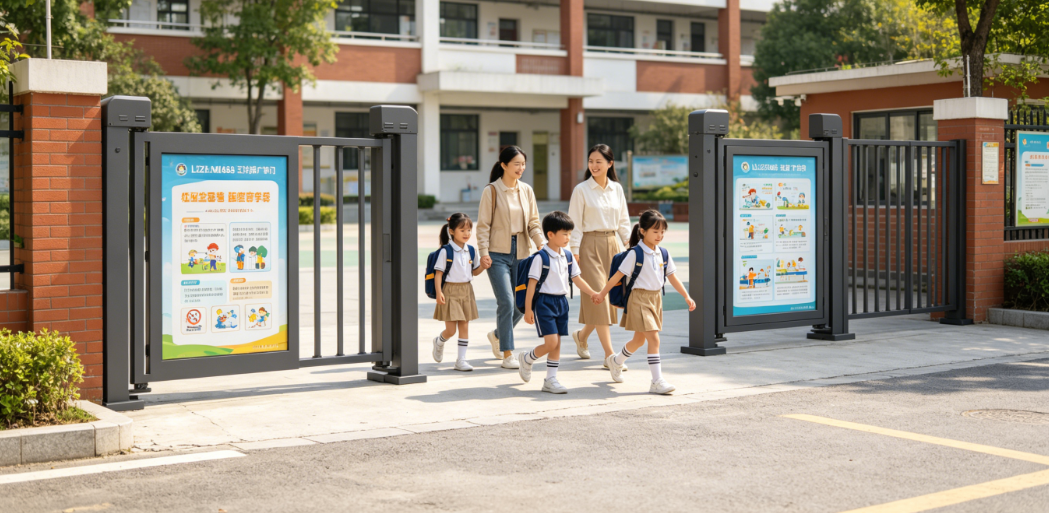

Public Institution Visitor Entrances

Both models are suited for schools, hospitals, and government facilities, where low-noise operation and reliable access control are essential for managing visitor and staff movement.

Retail & Shopping Mall Sidewalk Access Points

The M168-B’s advertising canvas can showcase store promotions or event information, making it ideal for retail centers with high foot traffic.

Technical Specifications

LLZH-M168-B

1. Working voltage: AC220V±10%

2. Rated power: 60W

3. Motor input voltage: DC24V

4. Working temperature: -40°C~70°C

5. Working humidity: ≤95%, no condensation

6. Working noise: ≤65 decibels

7. Housing protection level: IP44

8. Standard color: silver gray

9. Material: high-strength carbon steel plate

10. Opening method: card swiping, face, fingerprint, button, remote control

11. Canvas size: 1085*690mm

12. Door row 1.0

LLZH-M168-E

1. Working voltage: AC220V±10%

2. Rated power: 60W

3. Motor input voltage: DC24V

4. Working temperature: -40°C~70°C

5. Working humidity: ≤95%, no condensation

6. Working noise: ≤65 decibels

7. Housing protection level: IP44

8. Standard color: silver gray

9. Material: high-strength carbon steel plate

10. Opening method: card swiping, face, fingerprint, button, remote control

11. Door row 1.0

12.


Safety & Performance Characteristics

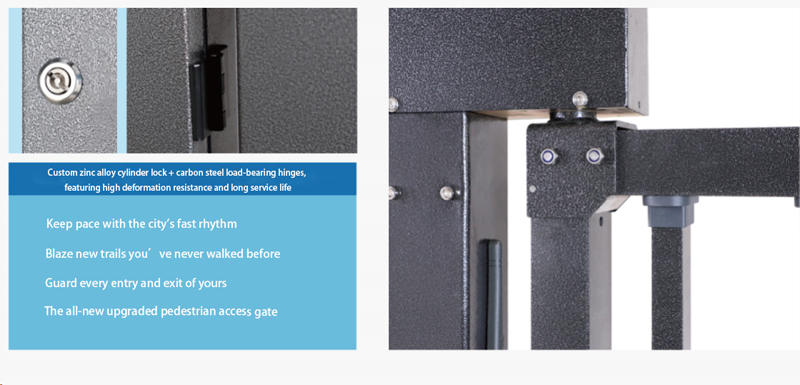

Zinc Alloy Hinges for Enhanced Durability

Equipped with dedicated zinc alloy column hinges that offer strong load-bearing capacity, high impact resistance, and a long service life.

Obstruction Detection & Safety Mechanism

The gates include built-in safety features to detect obstructions, automatically stopping or reversing the door to prevent injury to pedestrians or damage to the unit.

Stable & Efficient Power Operation

With a 60W rated power and DC24V motor input, the gates deliver consistent, energy-efficient performance for daily use.

Frequently Asked Questions (FAQ)

1. What is the main difference between the M168-B and M168-E models?

   The M168-B features an advertising canvas (1085×690mm) for promotional displays, while the M168-E is a streamlined, standard pedestrian gate without advertising capabilities.

2. What access methods are supported by these gates?

   They support multiple access methods including card swiping, facial recognition, fingerprint, button, and remote control.

3. Are these gates suitable for outdoor use in all weather conditions?

   Yes, they have an IP44 protection rating and can operate in temperatures from -40°C to 70°C, making them suitable for year-round outdoor use.

4. What is the noise level during operation?

   The gates operate at ≤65 decibels, ensuring quiet performance in residential and commercial environments.
